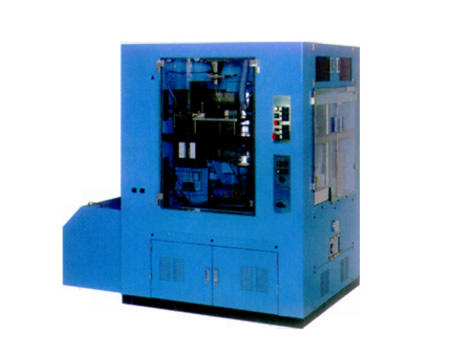

DZJR6正極環成型機
名稱Description | 單位Unit | 數值Value |
沖模數Number of P/D | set | 51 |
最大壓環壓力Maximum pressure for the pressing of rings | kN | 100 |
最大壓環直徑Maximum diameter of the ring to be pressed | mm | 13.6 |
最大填充深度Maximum depth of the ring to be pressed | mm | 33 |
最大壓環高度Maximum height of the ring to be pressed | mm | 15 |
轉臺速度Speed of the turret | r/min | 5-20 |
工作電壓（交流）／頻率Working voltage(A/V)/frequency | V/Hz | 380/50 |
電機功率Power of motor | kW | 11 |
電機轉速Speed of the motor | r/min | 1440 |
機器占地面積Area to be occupied by the machine | mm×mm | 1760×1250 |
機器高度Height of the machine | mm | 2600 |
機器凈重Net weight of the machine | kg | 7500 |
顆粒要求Requirements on the granules | 目mesh | 40-80 |
