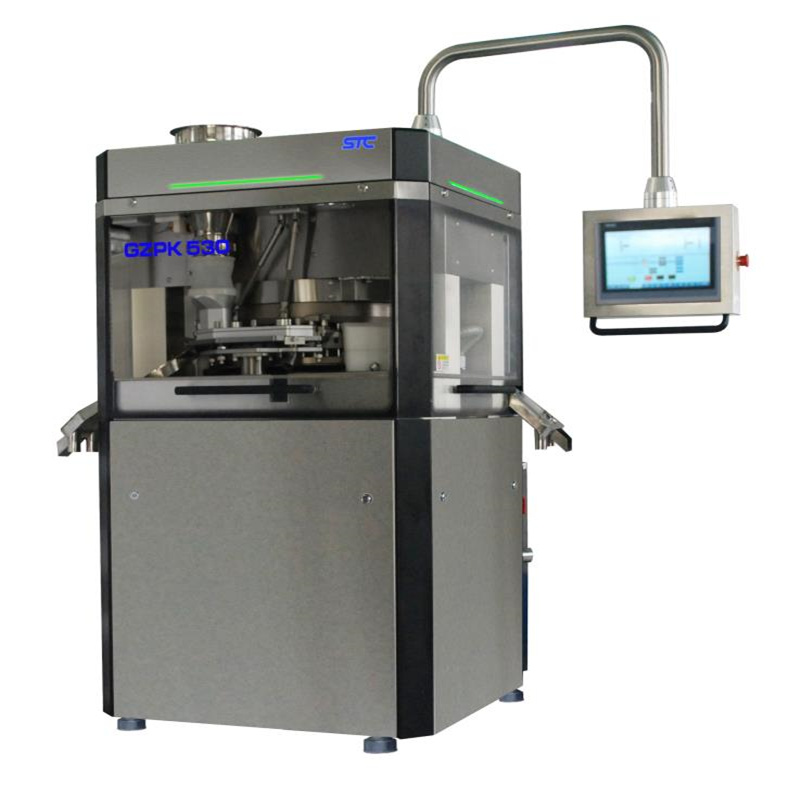

GZP530系列高速旋轉式壓片機
Series High Speed Rotary Tablet Press
特點：Fertures:
- l 高速，雙出片，高產量。High speed, double sided compression and high productive capacity.
- l 超大觸摸操作屏，計算機實時全自動控制。Ultra large touch screen operating panel and fully automatic real time computerized control.
- l 預壓、主壓兩次壓，主壓可達到100千牛。With pre compression and main compression is as high as 100KN.
- l 充填深度與片劑厚度調整均采用國際著名品牌的控制系統和測量裝置，位置精度高。The?international famous brand servo system and measuring device are adopted to ensure the high precision of the adjustment of the?fill depth and thickness of the?tablet.
- l 采用德國著名品牌的壓力采樣系統，以及德國西門子公司的先進控制模式，片重精度可達到±2%。The famous German brand compression sampling system is adopted and the most sophisticated controlling mode from Siemens is adopted with the weight deviation being ±2%.
- l 采用日本三菱公司的變頻控制系統，速度調節穩定可靠。Inverter made by Mitsubishi to ensure the stable and reliable speed adjustment.
- l 符合美國聯邦法—21 CFR PART 11，具有電子簽名和電子記錄功能。Compliance with US Federal Law— 21 CFR PART 11?with the function of electronic signature and record.
- l 符合美國FDA和聯盟的GMP。US FDA and EU GMP compliant.
- l 外形采用工業造型設計，獲得國家外形設計專利。The appearance of the tablet press adopts the industrial design with the nation patent of external.
- l 配置可水洗加料器 ?washable feeder
- l 可選擇配置粉末壓片裝置。The powder compression device is optional.
- l 可選擇配置壓雙層片裝置。The bi layer compression device is optional.
- l 可選擇配置防粘沖裝置。The anti punch stick device is?optional
主要技術參數Main Technacal Specifications
系列號 |
GZP530 |
||||
型號 |
GZP61/2 |
GZP57/2 |
GZP47/2 |
GZP39/2 |
|
沖位數 |
61 |
57 |
47 |
39 |
|
沖具型式 |
TSM 19 |
TSM 19 |
TSM 19 |
TSM 1“ |
|
產量 |
min. max. |
73,200 |
68,400 |
56,400 |
46,800 |
最大主壓力 |
kN |
100 |
|||
最大預壓力 |
kN |
30 |
|||
最大片徑 |
mm |
11 |
13 |
16 |
25 |
最大充填深度 |
mm |
18 |
|||
最大片厚 |
mm |
8.5 |
|||
轉臺轉速 |
rpm |
10～65 |
|||
主電機功率 |
kW |
7.5 |
|||
機器占地面積 |
mm |
1300×1100 |
|||
機器高度 |
mm |
2110 |
|||
機器重量 |
kg |
3000 |
|||
